Seat Switches

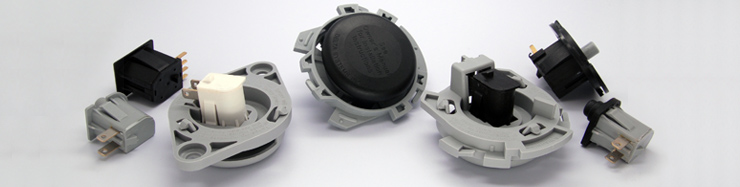

Delta Systems’ seat switches sense operator presence. Used in conjunction with a machine or vehicle’s safety system, operator presence switches provide a fail-safe condition (shutting down the engine, turning off cutting blades, etc.) when an equipment operator is no longer in the seat. Sealed, unsealed and high-cycle-life Hall Effect styles are available. Choose from twist lock or bolt mounting. With decades of proven reliability, our switches are ideal for rugged gas and electric-powered applications.

Typical Applications Include:

  • Outdoor Power Equipment
  • Utility Vehicles
  • Power Sports
  • Construction
  • Farm & Agricultural
  • Asphalt Pavers/Concrete Mixes
  • Light Industrial
  • Material Handling
  • Off-Highway Vehicles
  • Mining

CONTACT US To request datasheets, pricing, and additional information.

Sealed
Unsealed
Hall Effect

Sealed Seat Switches

With more OEM’s requiring sealed electrical systems, we’ve upgraded our popular seat switch product line by introducing a new IP67-sealed design installed into the familiar cap and frame assembly. Ideal for applications where protection of sensitive electronics is critical.

Disclaimer: Drawings and 3D models are provided free of charge for your use but remain the sole property of Delta Systems, Inc. ("Company"). While Company has used reasonable efforts to ensure their accuracy, Company does not guarantee that they are error-free or make any other representation, warranty, or guarantee that the information is completely accurate or up-to-date. CAD data may have been simplified to remove proprietary detail. Company expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.

Electrical Specifications

Attribute
Specification
Operating Current @ 12-14 VDC 10mA - 3A
Pre-travel .070-.155"
Total Travel .28-.32"
Cycle Life @ Max Load Inductive 10,000, Resistive 75,000
Actuation Force @ .250" Travel 5.1 ± 1.8 lbs

Environmental Ratings

Exposure
Specification
Ingress Protection IEC 60529 IP67
Operating Temperature -30 – 85 °C
Installation Temperature Range -15 – 40 °C
Humidity 95% RH Max
Salt Fog ASTM B117, 96 hours
Chemical Resistance Gasoline, Diesel Fuel, Engine Oil, Insect Killer, Weed Killer, Liquid Fertilizer

Configurations

Product Line
Part number
Electrical Configuration
Mounting Style
Actuation Force
Type
UL File #
IP67
RoHS
Reach
Sealed - Seat 6552-001  NO/NO Bolt Mount 5.1 ± 1.8 lbs @ .250" Electromechanical No Yes Yes Yes
Sealed - Seat 6552-002  NO/NC Bolt Mount 5.1 ± 1.8 lbs @ .250" Electromechanical No Yes Yes Yes
Sealed - Seat 6554-001  NO/NO Twist Lock 5.1 ± 1.8 lbs @ .250" Electromechanical No Yes Yes Yes
Sealed - Seat 6554-002  NO/NC Twist Lock 5.1 ± 1.8 lbs @ .250" Electromechanical No Yes Yes Yes

Unsealed Seat Switches

Delta Systems' seat switches are easy to integrate into your application and ruggedly designed to last, equipped with self-cleaning contacts that extend switch life in tough environments where moisture and dirt are constant irritants. Select models are UL listed.

Disclaimer: Drawings and 3D models are provided free of charge for your use but remain the sole property of Delta Systems, Inc. ("Company"). While Company has used reasonable efforts to ensure their accuracy, Company does not guarantee that they are error-free or make any other representation, warranty, or guarantee that the information is completely accurate or up-to-date. CAD data may have been simplified to remove proprietary detail. Company expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.

Electrical Specifications

Attribute
Specification
Maximum Voltage 18 Vdc
Max Current @ 12-14 VDC 3A
Pre-travel .040-.150 inches
Contact Resistance @ Max Current, 83.3mΩ
Cycle Life @ Max Load Inductive 10,000, Resistive 75,000

Environmental Ratings

Exposure
Specification
Ingress Protection IP54
Operating Temperature -20 °F to 150 °F (-28 °C to 66 °C)
Storage Temperature -40 °F to 185 °F (-40 °C to 85 °C)
Salt Fog ASTM B117. 96 hours
Chemical Resistance Gasoline, Diesel Fuel, Engine Oil, Insect Killer, Weed Killer, Liquid Fertilizer

Configurations

Product Line
Part number
Electrical Configuration
Mounting Style
Actuation Force
Type
UL File #
IP67
App Prints
Plungers - Seat 6500-01 NO Twist Lock, 3.3" Dia 5.0 +/- 1.5 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6500-02 NO Twist Lock, 3.3" Dia 4.0 +/- 1.0 @ .300" Electromechanical No No download down arrow
Plungers - Seat 6500-03 NO Twist Lock, 3.3" Dia 5.0 +/- 1.5 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6500-04 NO Twist Lock, 3.3" Dia 4.0 +/- 1.0 @ .300" Electromechanical No No download down arrow
Plungers - Seat 6500-04FR NO Twist Lock, 3.3" Dia 5.0 +/- 1.5 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6500-51 NC Twist Lock, 3.3" Dia 5.0 +/- 1.5 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6500-52 NC Twist Lock, 3.3" Dia 5.0 +/- 1.5 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6500-52FR NC Twist Lock, 3.3" Dia 5.0 +/- 1.5 @ .250" Electromechanical E319443 No download down arrow
Plungers - Seat 6500-54 NC Twist Lock, 3.3" Dia 4.0 +/- 1.0 @ .300" Electromechanical No No download down arrow
Plungers - Seat 6500-56 NC Twist Lock, 3.3" Dia 4.0 +/- 1.0 @ .300" Electromechanical No No download down arrow
Plungers - Seat 6500-57 NO Twist Lock, 3.3" Dia 5.0 +/- 1.5 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6520 NO Bolt Mount 4.0 ± 2.0 @ .300" Electromechanical No No download down arrow
Plungers - Seat 6520-01FR NO Bolt Mount 4.0 ± 2.0 @ .300" Electromechanical E319443 No download down arrow
Plungers - Seat 6520-51 NC Bolt Mount 4.0 ± 2.0 @ .300" Electromechanical No No download down arrow
Plungers - Seat 6520-60 NO Bolt Mount 6.0 ± 2.0 @ .300" Electromechanical No No download down arrow
Plungers - Seat 6520-604 NO Bolt Mount 6.0 ± 2.0 @ .300" Electromechanical No No download down arrow
Plungers - Seat 6520-61 NC Bolt mount 6.0 ± 2.0 @ .300" Electromechanical No No download down arrow
Plungers - Seat 6520-62 NO Bolt Mount 6.0 ± 2.0 @ .300" Electromechanical No No download down arrow
Plungers - Seat 6520-98 NO Bolt Mount 4.0 ± 2.0 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6522-02 NO\NO Bolt Mount 2.5 ± 1.0 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6522-03 NC\NC Bolt Mount 2.5 ± 1.0 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6522-53 NC\NO Bolt Mount 2.5 ± 1.0 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6522-683 NC\NC Bolt Mount 6.0 ± 2.0 @ .300" Electromechanical No No download down arrow
Plungers - Seat 6544-02 NO\NO Twist Lock, 3.3" Dia 2.5 +/- 1.0 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6544-03 NC\NC Twist Lock, 3.3" Dia 2.5 +/- 1.0 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6544-53 NC\NO Twist Lock, 3.3" Dia 2.5 +/- 1.0 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6544-53FR NC\NO Twist Lock, 3.3" Dia 4.6 +/- 1.7 @ .400" Electromechanical E319443 No download down arrow
Plungers - Seat 6544-602 NO\NO Twist Lock, 3.3" Dia 5.0 +/- 1.5 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6544-603 NC\NC Twist Lock, 3.3" Dia 5.0 +/- 1.5 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6544-653 NC\NO Twist Lock, 3.3" Dia 5.0 +/- 1.5 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6544-683 NC\NC Twist Lock, 3.3" Dia 5.0 +/- 1.5 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6544-902 NO\NO Twist Lock, 3.3" Dia 7.0 +/- 1.5 @ .250" Electromechanical No No download down arrow
Plungers - Seat 6544-983 NC\NC Twist Lock, 3.3" Dia 7.0 +/- 1.5 @ .250" Electromechanical No No download down arrow

Hall Effect Seat Switches

Delta Systems’ Hall Effect Seat Switch indicates operator presence via an electrical signal and contains no mechanical contacts, allowing the switch to operate for 1 million or more cycles. Electronics are sealed to IP67. Multiple electrical configurations are available.

Disclaimer: Drawings and 3D models are provided free of charge for your use but remain the sole property of Delta Systems, Inc. ("Company"). While Company has used reasonable efforts to ensure their accuracy, Company does not guarantee that they are error-free or make any other representation, warranty, or guarantee that the information is completely accurate or up-to-date. CAD data may have been simplified to remove proprietary detail. Company expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.

Electrical Specifications

Attribute
6540-006
6540-007
6540-008
Input Voltage 6 – 40 VDC 9 – 40 VDC 8 – 16 VDC
Output Signal Voltage, Actuated 5 VDC 5 VDC 2.5 – 4.15 VDC
Output Signal Voltage, At Rest 1 VDC Ground 0.9 – 1.85 VDC
Output Load Resistance >10KΩ >10KΩ 8930 Ω
Pre-travel, inches .05” – .20” .05” – .20” .10” – .20”
Actuation Force, lbs 3.7 +/- 0.5 @ .300” Travel 3.7 +/- 0.5 @ .300” Travel 0.5-3.0 @ Actuation
Cycle Life 1000000 1000000 1000000
Operating/Storage Temperature -40 °F to 185 °F (-40 °C to 85 °C) -40 °F to 185 °F (-40 °C to 85 °C) -40 °F to 185 °F (-40 °C to 85 °C)

Environmental Ratings

Exposure
Specification
Ingress Protection IP67
Operating/Storage Temperature -40 – 85 °C
Installation Temperature Range -15 – 40 °C
Salt Fog ASTM B117, 96 hours
Chemical Resistance Gasoline, Diesel Fuel, Engine Oil, Insect Killer, Weed Killer, Liquid Fertilizer

Configurations

Product Line
Part number
Electrical Configuration
Mounting Style
Actuation Force
Type
IP67
App Prints
Hall Effect - Seat 6540-006 1, 5 VDC Bolt Mount 3.7 +/- 0.5 @ .300" Hall Effect Yes download down arrow
Hall Effect - Seat 6540-007 0, 5 VDC Bolt Mount 3.7 +/- 0.5 @ .300" Hall Effect Yes download down arrow
Hall Effect - Seat 6540-008 2.5 – 4.15 VDC Bolt Mount 0.5-3.0 @ Actuation Hall Effect Yes download down arrow
