Mini Modules

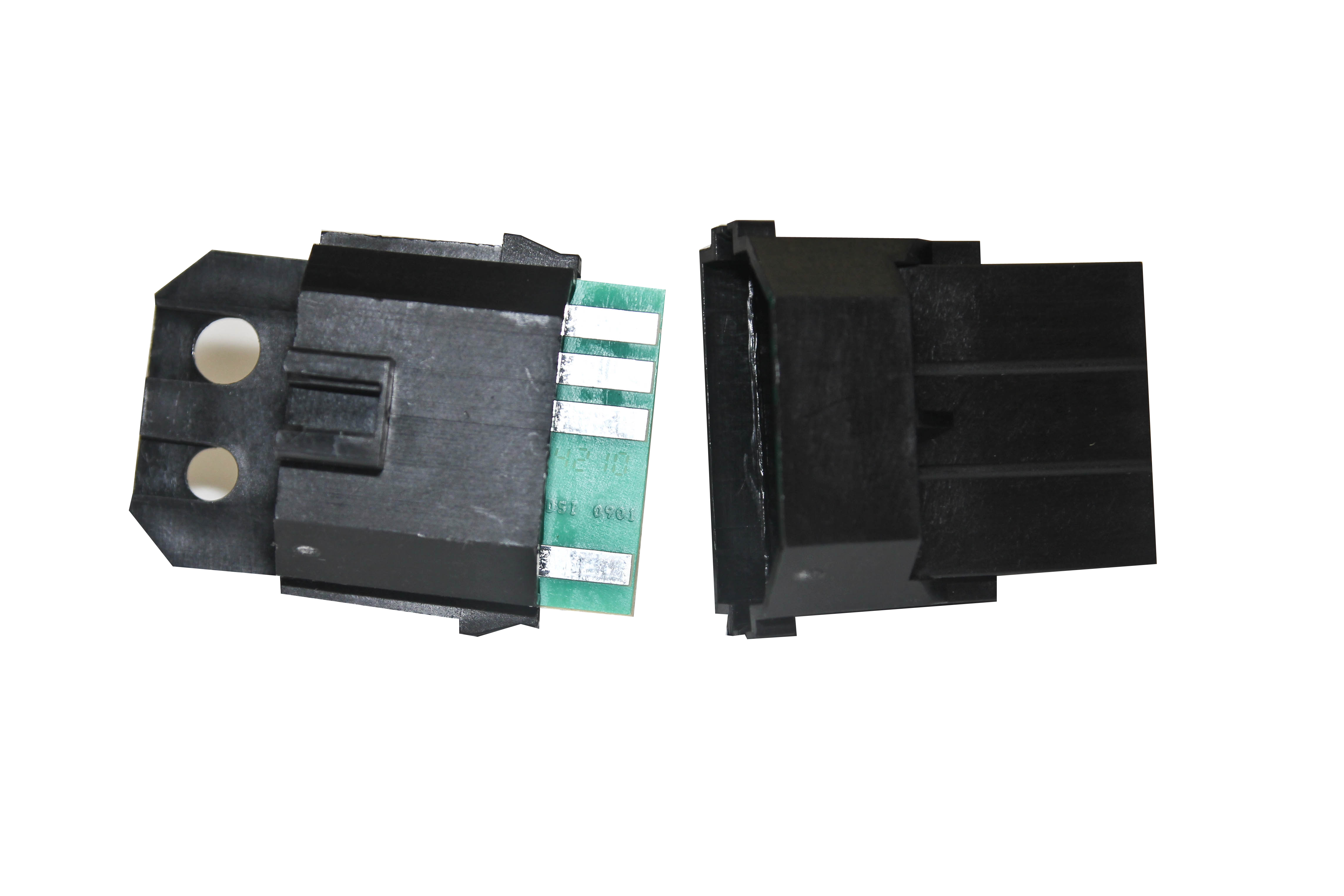

Our family of mini modules provides electrical system designers with specific control functions for safer performance. All modules offer protection from rugged environments using fully encapsulated electronics, and our edge connector technology reduces cost, increases reliability, and simplifies assembly. Typical applications include:

  • Outdoor Power Equipment
  • Farm & Agricultural
  • Construction
  • Asphalt Pavers/Concrete Mixers
  • Light Industrial
  • And more!

CONTACT US   To request datasheets, pricing, and additional information.

Safe Start/Run Module
Time Delay Module
Low Voltage Indicator Module

Safe start/run modules are typically used on equipment with recoil start systems to prevent them from starting in gear and/or running without an operator present.

Safe start modules require one input signal (typically a neutral switch) to be closed to permit the magneto to fire the spark plug of an engine.  After starting, the input state may change, and the engine will continue to run.

Safe start / safe run modules have the safe start functionality of the 0903 series. After starting, to keep the engine running, a second input (typically an operator presence switch) must be closed before the starting input is opened.

Electrical Specifications

Attribute
Specification
Max Magneto Voltage 500 V

Environmental Ratings

Exposure
Specification
Ingress Protection IEC 60529 IP67, electronics only
Operating Temperature -20 to 180 °F
Humidity 96% RH
Chemical Resistance Gasoline, Diesel Fuel, Hydraulic Oil, Engine Oil, Bug Repellent DEET, Saltwater Solution, Wax, Sunscreen, Insect Killer, Weed Killer, Liquid Fertilizer, Bleach Disinfectant Spray, Mole Repellent, Bleach, Ammonia, Isopropyl Alcohol, Degreaser and Battery Acid

Configurations

Part number
Function
Ignition Discharge System
0903A Safe Start Inductive
0903T Safe Start Capacitive
1203A Safe Start / Safe Run Inductive

Accessories

Part Number
Description
Use With
Application Prints
3D Models
972372 Connector Housing All Mini Modules download down arrow download down arrow

Time delay modules provide a time delay for a relay from when a switch opens until the effect of the state change is imposed on the electrical system.

Electrical Specifications

Attribute
Specification
Max Battery Voltage 20 VDC (pins B & E only)

Environmental Ratings

Exposure
Specification
Ingress Protection IEC 60529 IP67, electronics only
Operating Temperature -20 to 180 °F
Humidity 96% RH
Chemical Resistance Gasoline, Diesel Fuel, Hydraulic Oil, Engine Oil, Bug Repellent DEET, Saltwater Solution, Wax, Sunscreen, Insect Killer, Weed Killer, Liquid Fertilizer, Bleach Disinfectant Spray, Mole Repellent, Bleach, Ammonia, Isopropyl Alcohol, Degreaser and Battery Acid

Configurations

Part number
Time Delay
1805 1/2±1/8 sec
1808 1-3/4±1/4 sec

Accessories

Part Number
Description
Use With
Application Prints
3D Models
972372 Connector Housing All Mini Modules download down arrow download down arrow

Low Voltage Indicator Module monitors battery voltage and grounds an output when low battery voltage is detected.

Electrical Specifications

Attribute
Specification
Max Battery Voltage 18 VDC
Switch Point 11.5 ± 0.5 VDC

Environmental Ratings

Exposure
Specification
Ingress Protection IEC 60529 IP67, electronics only
Operating Temperature -20 to 180 °F
Humidity 96% RH
Chemical Resistance Gasoline, Diesel Fuel, Hydraulic Oil, Engine Oil, Bug Repellent DEET, Saltwater Solution, Wax, Sunscreen, Insect Killer, Weed Killer, Liquid Fertilizer, Bleach Disinfectant Spray, Mole Repellent, Bleach, Ammonia, Isopropyl Alcohol, Degreaser and Battery Acid

Configurations

Part number
Max Current
1901 200 mA

Accessories

Part Number
Description
Use With
Application Prints
3D Models
972372 Connector Housing All Mini Modules download down arrow download down arrow
