Power Take-Off (PTO) Switches

First introduced to the outdoor power equipment industry over 30 years ago, Delta Systems’ Power Take-Off (PTO) Switches have been installed on tens of millions of machines and have become the standard for safe, reliable performance. Wiping action prevents carbon buildup and increases part life. Snap-in installation makes assembly simple and cost effective. Sealed and unsealed versions offer current ratings from 10mA to 10A. Our rugged design resists shock and vibration. Multiple standard knob colors and graphics are available.

Typical applications include:

  • Outdoor Power Equipment
  • Construction
  • Farm & Agricultural
  • Light Industrial
  • Material Handling
  • Off-Highway Vehicles

CONTACT US To request datasheets, pricing, and additional information.

Sealed
Unsealed

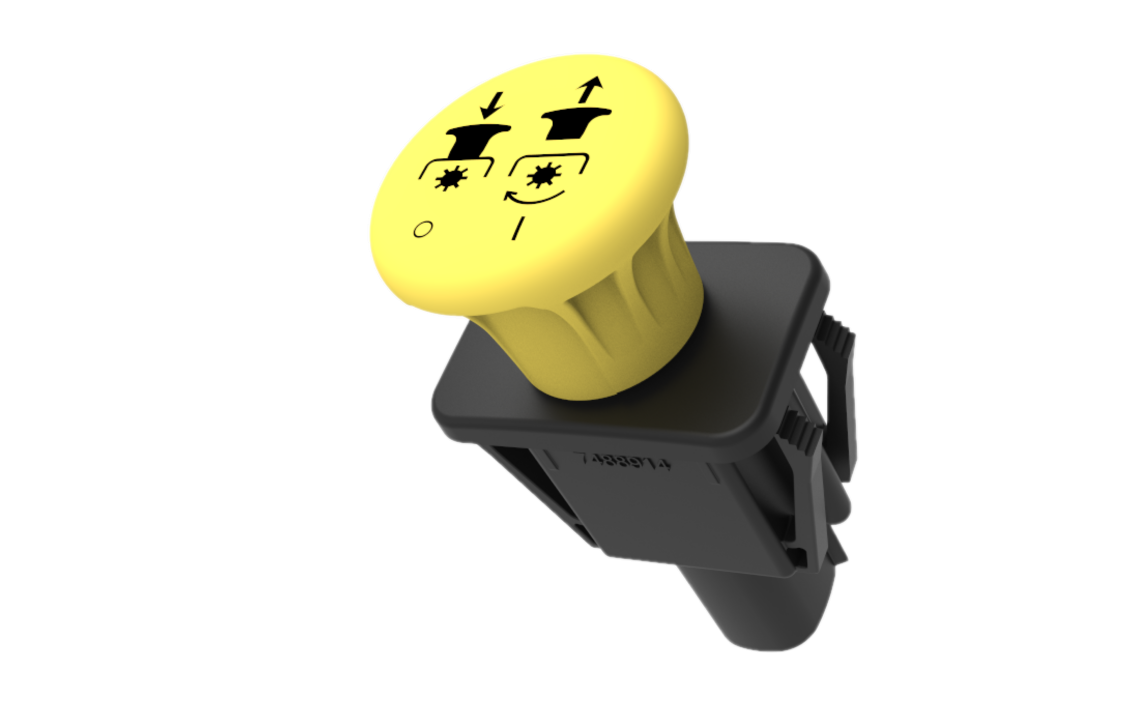

Sealed PTO Switches

A sealed solution for harsh environments, one switch covers operating currents from 10mA to 10A, making the switch suitable for direct switching of clutches or as a low current input to a controller. Controls switching for up to six independent single throw circuits or up to three dual throw circuits. Includes an integral Molex MX150 sealed connector and a 3-year warranty.

Datasheets

Disclaimer: Drawings and 3D models are provided free of charge for your use but remain the sole property of Delta Systems, Inc. ("Company"). While Company has used reasonable efforts to ensure their accuracy, Company does not guarantee that they are error-free or make any other representation, warranty, or guarantee that the information is completely accurate or up-to-date. CAD data may have been simplified to remove proprietary detail. Company expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.

Electrical Specifications

Attribute
Specification
Electrical Life:Cycles Resistive: 100,000, Inductive: 40,000
Operating Voltage Range 9-96 VDC
Operating Current 10mA-10Amps @ 9-16 VDC, 10mA-500mA @ 48-96 VDC
Contact Resistance, New 50 mΩ Max @ 10mA, 12 VDC

Environmental Ratings

Exposure
Specification
Ingress Protection IP67, with sealed mating connector
Operating Temperature -30 °F to 150 °F (-35 °C to 65°C)
Humidity 95% RH, non-condensing
Pressure Wash 3000PSI, Front Surface Only
Chemical Resistance Gasoline, Diesel Fuel, Hydraulic Oil, Engine Oil, Bug Repellent DEET, Salt Water Solution, Wax, Sunscreen, Insect Killer, Weed Killer, Liquid Fertilizer, Bleach Disinfectant Spray, Mole Repellent, Bleach, Ammonia, Isopropyl Alcohol, Degreaser and Battery Acid

Configurations

Product Line
Part number
Electrical Config
Knob Style
Knob Color
# of Positions
Current Rating, Amps
IP67
App Prints
PTO - Sealed 6205-122A 3 NO / 3 NC 1.4" Diameter Red 2 10mA-10A Yes download down arrow
PTO - Sealed 6205-122B 3 NO / 3 NC 1.4" Diameter Red 2 10mA-10A Yes download down arrow
PTO - Sealed 6205-131A 3 NO / 3 NC 1.4" Diameter Yellow 2 10mA-10A Yes download down arrow
PTO - Sealed 6205-131B 3 NO / 3 NC 1.4" Diameter Yellow 2 10mA-10A Yes download down arrow
PTO - Sealed 6205-131C 3 NO / 3 NC 1.4" Diameter Yellow 2 10mA-10A Yes download down arrow

Unsealed PTO Switch

Controls switching for one single throw circuit and up to two dual throw circuits. Ideal for direct switching PTO clutches up to 5A.

Disclaimer: Drawings and 3D models are provided free of charge for your use but remain the sole property of Delta Systems, Inc. ("Company"). While Company has used reasonable efforts to ensure their accuracy, Company does not guarantee that they are error-free or make any other representation, warranty, or guarantee that the information is completely accurate or up-to-date. CAD data may have been simplified to remove proprietary detail. Company expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.

Electrical Specifications

Attribute
Specification
Electrical Life:Cycles Resistive: 100,000, Inductive: 40,000
Operating Voltage Range 9-96 VDC
Operating Current >250 mA recommended, 5A max @ 9-16 VDC, 250mA-500mA @ 48-96 VDC
Contact Resistance, New 50 mΩ Max @ 5A, 12 VDC

Environmental Ratings

Exposure
Specification
Dust / Water Ingress IEC 60529, IP53
Operating Temperature Range -30 °F to 150 °F (-35 °C to 65°C)
Chemical Resistance EP455 – 5.8 Brush Chemicals Tested Gasoline, Diesel Fuel, Hydraulic Oil, Engine Oil, Bug repellent DEET, Salt Water, Wax, Sunscreen, Insect Killer, Weed Killer, Liquid Fertilizer, Bleach disinfectant spray, Fungicide, Mole repellant, Bleach, Ammonia, Degreaser, Battery Acid

Configurations

Product Line
Part number
Electrical Config
Knob Style
Knob Color
Current Rating, Amps
# of Positions
Graphic
Graphic Color
IP67
App Prints
PTO - Unsealed 6204-204 NO\-\DT 1.5" Diameter Red 5 2 A White No download down arrow
PTO - Unsealed 6204-206 NC\-\DT 1.5" Diameter Red 5 2 B White No download down arrow
PTO - Unsealed 6204-207 -\DT\DT 1.5" Diameter Yellow 5 2 None - No download down arrow
PTO - Unsealed 6204-208 -\DT\DT 1.5" Diameter Black 5 2 None - No download down arrow
PTO - Unsealed 6204-209 NC\-\DT 1.5" Diameter Red 5 2 A White No download down arrow
PTO - Unsealed 6204-210 -\DT\DT 1.5" Diameter Yellow 5 2 B Black No download down arrow
PTO - Unsealed 6204-211 -\DT\DT 1.5" Diameter Black 5 2 B Silver No download down arrow
PTO - Unsealed 6204-212 NC\-\DT 1.5" Diameter Yellow 5 2 A Black No download down arrow
PTO - Unsealed 6204-219 NC\-\DT 1.5" Diameter Yellow 5 2 B Black No download down arrow
PTO - Unsealed 6204-220 -\DT\DT 1.25" Diameter Red 5 2 None - No download down arrow
PTO - Unsealed 6204-303 NO\DT\DT 1.5" Diameter Black 5 2 A White No download down arrow
PTO - Unsealed 6204-308 NC\NO\DT 1.5" Diameter Black 5 2 A White No download down arrow
PTO - Unsealed 6204-313 NO\DT\NC 1.5" Diameter Black 5 2 A Silver No download down arrow
PTO - Unsealed 6204-315 NO\DT\DT 1.5" Diameter Yellow 5 2 A Black No download down arrow
PTO - Unsealed 6204-316 NO\DT\DT 1.5" Diameter Red 5 2 A White No download down arrow
PTO - Unsealed 6204-318 NO\DT\DT 1.5" Diameter Red 5 2 B White No download down arrow
PTO - Unsealed 6204-320 NO\DT\DT 1.25" Diameter Red 5 2 None - No download down arrow
PTO - Unsealed 6204-321 NO\DT\DT 1.25" Diameter Red 5 2 C White No download down arrow
PTO - Unsealed 6204-322 NC\DT\DT 1.25" Diameter Red 5 2 C White No download down arrow
PTO - Unsealed 6204-325 NC\DT\DT 1.25" Diameter Yellow 5 2 None - No download down arrow
PTO - Unsealed 6204-331 NO\DT\DT 1.25" Diameter Black 5 2 D White No download down arrow
PTO - Unsealed 6204-341 NO\DT\DT 1.5" Diameter Yellow 5 2 B Black No download down arrow
PTO - Unsealed 6204-342 NC\DT\DT 1.25" Diameter Yellow 5 2 C Black No download down arrow
PTO - Unsealed 6204-348 NO\DT\DT 1.5" Diameter Black 5 2 H White No download down arrow
PTO - Unsealed 6204-353 NC\DT\DT 1.25" Diameter Red 5 2 None - No download down arrow
PTO - Unsealed 6204-358 NC\DT\DT 1.5" Diameter Yellow 5 2 B Black No download down arrow
PTO - Unsealed 6204-362 NC\DT\DT 1.5" Diameter Yellow 5 2 A Black No download down arrow
PTO - Unsealed 6274-202 NO\-\DT 1.25" Diameter Yellow 5 3 C Black No download down arrow
PTO - Unsealed 6274-305 NO\DT\DT 1.25" Diameter Red 5 3 G White No download down arrow
PTO - Unsealed 6274-307 NO\DT\DT 1.5" Diameter Yellow 5 3 None - No download down arrow

Accessories

Part Number
Description
Use With
Application Prints
3D Models
972301 PTO Switch Mounting Spacer 6204, 6205, 6274 PTO Switches download down arrow download down arrow
972305 Connector Housing 6204/6274 Series Switch download down arrow download down arrow
972306 Connector Housing 6204/6274 Series Switch download down arrow download down arrow
