Mounting Hardware
Delta Systems offers spacers, plugs, and nuts designed to work with our 6850, 6900, and 6901 series rotary ignition switches.
CONTACT US To request datasheets, pricing, and additional information.
Spacers-Plugs
Nuts-Washers
Spacers/PLUGS
Spacers help secure our switches and meters in their mounting hole when the panel is too thin or the paint around the edges doesn't allow the snap wings to fully engage. Plug fits and covers a standard 1.46" x .95" mounting hole.
Disclaimer: Drawings and 3D models are provided free of charge for your use but remain the sole property of Delta Systems, Inc. ("Company"). While Company has used reasonable efforts to ensure their accuracy, Company does not guarantee that they are error-free or make any other representation, warranty, or guarantee that the information is completely accurate or up-to-date. CAD data may have been simplified to remove proprietary detail. Company expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.
Environmental Ratings
Exposure |
Specification |
|---|---|
| Operating Temperature | -30 to 150 °F |
| Chemical Resistance | Gasoline, Diesel Fuel, Hydraulic Oil, Engine Oil, Bug Repellent DEET, Saltwater Solution, Wax, Sunscreen, Insect Killer, Weed Killer, Liquid Fertilizer, Bleach Disinfectant Spray, Mole Repellent, Bleach, Ammonia, Isopropyl Alcohol, Degreaser and Battery Acid |
Configurations
Part Number |
Description |
Use With |
Color |
Material |
Application Prints |
3D Models |
|---|---|---|---|---|---|---|
| 972301 | PTO Switch Mounting Spacer | 6204, 6205, 6274 PTO Switches | Black | GF-Reinforced Polypropylene | download down arrow | download down arrow |
| 972375 | Meter Spacer | 2014 Series Meters | Black | PC/ABS | download down arrow | download down arrow |
| 74965 | Meter Mounting Hole Plug | 2014 Series Meters | Black | PC | download down arrow |
Nuts/Washers
Delta Systems threaded plastic nuts and washer retain our 6850 series keyed ignition switches in a plastic or metal dash or console.
Disclaimer: Drawings and 3D models are provided free of charge for your use but remain the sole property of Delta Systems, Inc. ("Company"). While Company has used reasonable efforts to ensure their accuracy, Company does not guarantee that they are error-free or make any other representation, warranty, or guarantee that the information is completely accurate or up-to-date. CAD data may have been simplified to remove proprietary detail. Company expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties or merchantability or fitness for a particular purpose.
Environmental Ratings
Exposure |
Specification |
|---|---|
| Operating Temperature | -30 to 150 °F |
| Chemical Resistance | Gasoline, Diesel Fuel, Hydraulic Oil, Engine Oil, Bug Repellent DEET, Saltwater Solution, Wax, Sunscreen, Insect Killer, Weed Killer, Liquid Fertilizer, Bleach Disinfectant Spray, Mole Repellent, Bleach, Ammonia, Isopropyl Alcohol, Degreaser and Battery Acid |
Configurations
Part Number |
Use With |
Color |
Material |
Application Prints |
|---|---|---|---|---|

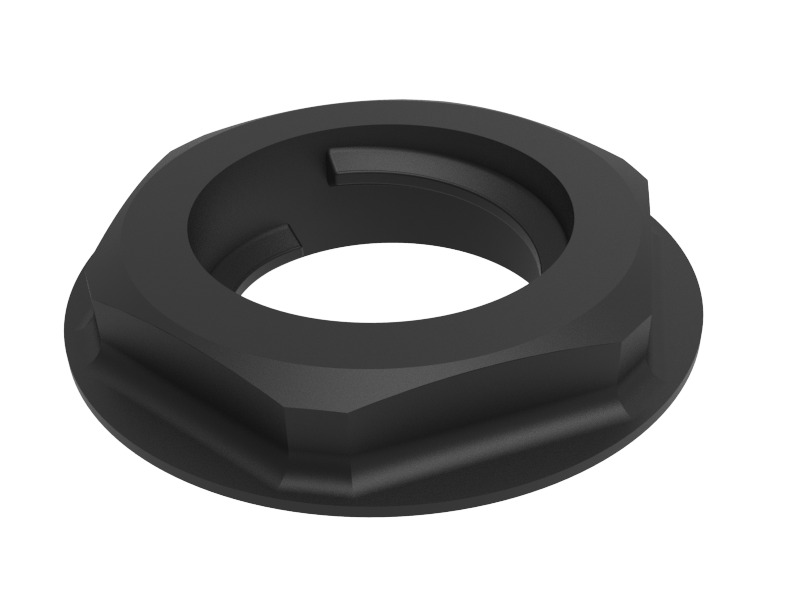

| 9252-BK | 6850 Series Switch | Black | GF-Reinforced Polypropylene | download down arrow |
| 9256 | 6850 Series Switch | Black | GF-Reinforced Polypropylene | download down arrow |
| 9260 | 6850 Series Switch | Black | GF-Reinforced Polypropylene | download down arrow |
