Rear Backup Camera

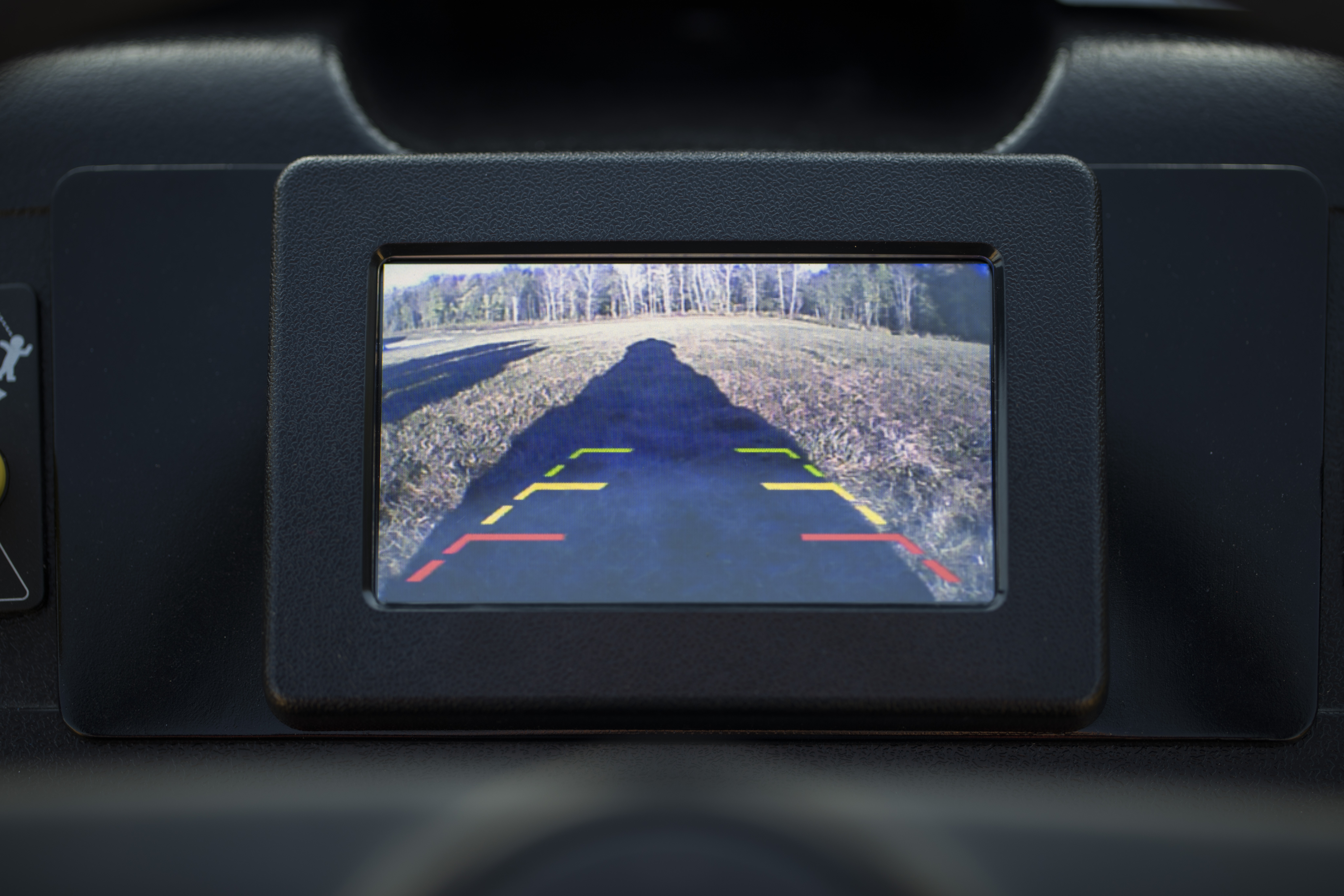

Delta Systems’ new rear backup camera gives equipment operators better visualization, helping them stay safe while also protecting their machinery and surroundings. The two-part system of a wide-angle camera and a digital dashboard display allows drivers to quickly locate objects behind them, eliminating blind spots.

solution offers:

  • Full rearview visibility
  • Crisp, clear visuals and guidance
  • Weather-resistant design
  • Adaptability to any application
  • Full customization
  • Optional display inputs

Using a display with video backup camera, the display can also be used to provide vital equipment/vehicle information—warning signals, equipment data, and safety interlock indicators—all within the driver’s line of sight.

Both the camera and the display also have an IP67 rating, protecting the system against dirt, grass, water and other contaminates.

The future of equipment safety is now

The National Highway Traffic Safety Administration’s ruling that requires backup cameras for new automotive vehicles manufactured after May 2018 translates to improved visualization technologies as standard features for many machines—from commercial and residential ride-on mowers to agricultural equipment to forklifts and beyond. Safety is, and will become, an important differentiator for OEMs as users’ expectations of safety and convenience mirror their automotive experiences.

Features


Camera
  • Rearview camera with a sealed connector
  • NTSC video signal
  • Video feed automatically turns on when machine starts to move backwards
  • Tri-color grid
  • Customizable graphics
  • User friendly messages and warnings
  • Safety interlock monitor
Display
  • 4.3”, Thin Film Transitor (TFT)
  • Display Resolution: 480 x 272
  • 24-bit RGB Color Interface
  • Operating Temperature: -20°C to 70°C
  • Sunlight Readable: 1000Nits
  • Anti-Glare

Technical Specifications


Camera
  • Camera Type: NTSC_M
  • Rated Voltage: 12V Rated Power: 1W
  • Wide angle: 170 degrees
  • Night Vision Distance: 5m
Display
  • Operating Voltage: 9.0V – 16.0V
  • Reverse Polarity Protection - Yes
  • Safety interlock monitor
  • Operating Temperature Range: -20°C to 70°C
  • Humidity: 95% RH
  • Ingress Protection IP67, with mating connector
  • Type: Snap-In, Panel Mount, from Front
  • Customizable Graphics
  • Touch Screen
  • J1939 CAN-Bus capable for engine diagnostics

Markets & Applications


Delta Systems’ Backup Camera is designed for differentiated participation in many market segments and applications, including, but not limited to:

  • Outdoor Power Equipment
  • Power Sports Equipment
  • Agricultural Machinery
  • Light Industrial Equipment
  • Material Handling Equipment
  • Heavy Equipment
  • Off Highway Vehicles
  • Mining equipment
  • Crane Trucks
  • Asphalt Pavers/Concrete Mixers
  • And more!

Call today to learn more about how this safety solution fits your equipment needs!
