Object Detection

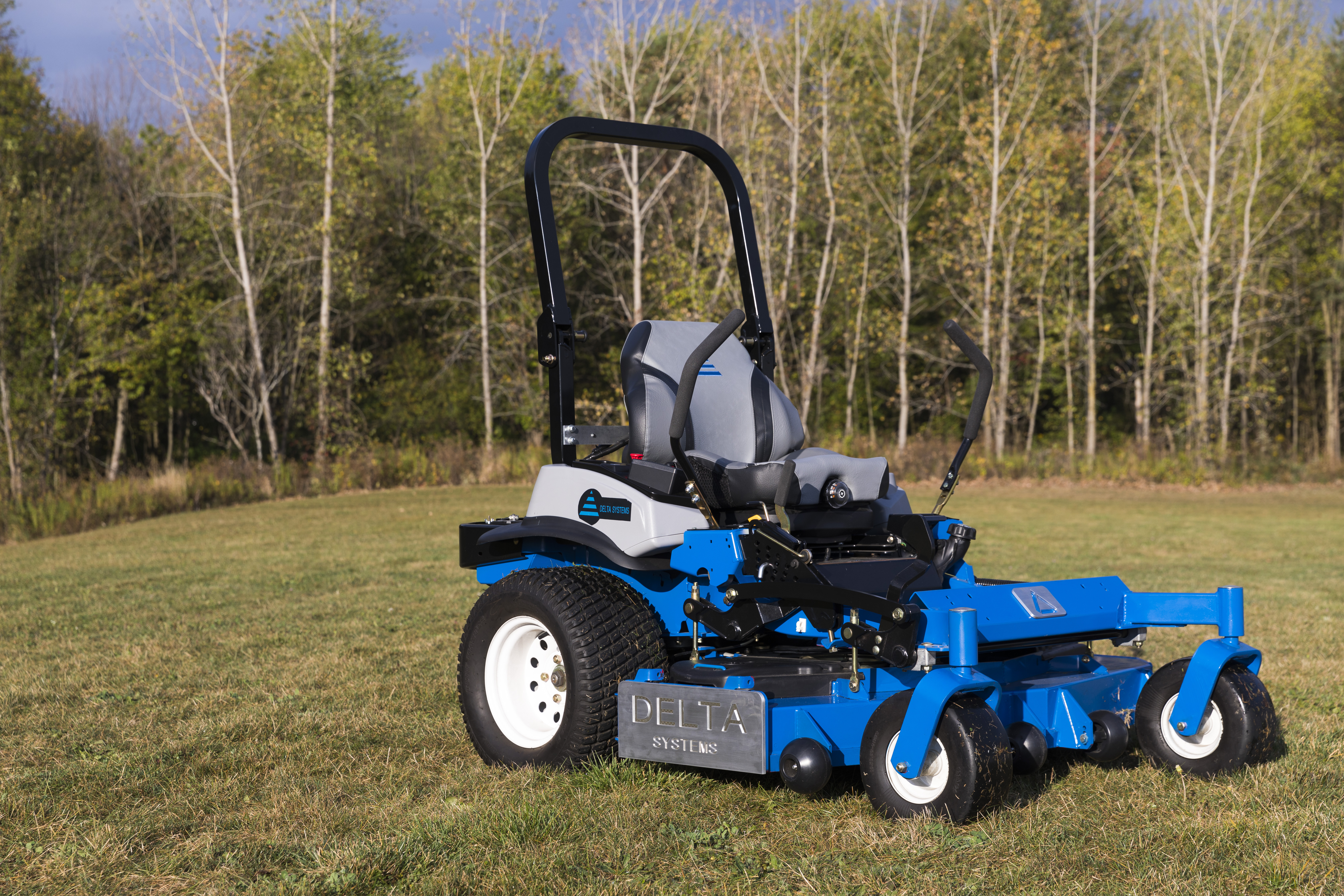

Delta’s rear object detection system monitors a specific area behind any type of equipment, detecting objects and providing a warning to the equipment operators when they are approaching an obstacle while in reverse. These systems assist the driver in avoiding back-up collisions or bystanders.

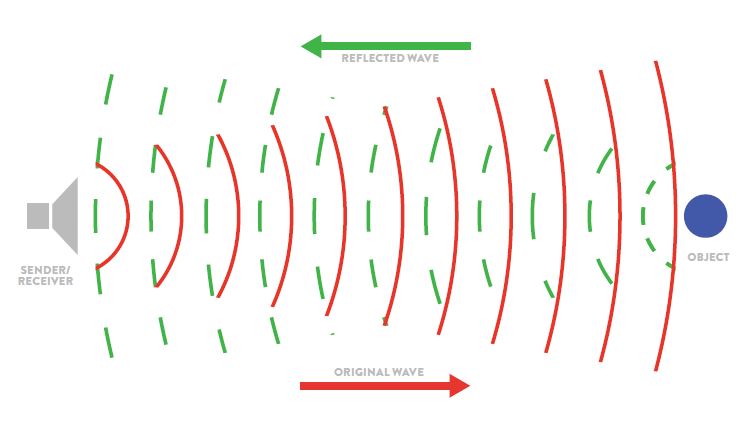

Our Ultrasonic Time-of-Flight (TOF) Objects Detection sensor module uses a rear-facing sensor that detects things through sound waves. Our objects detection sensor will detect objects and measure their distances between 1 ft to 20 ft.

The onboard Microcontroller is also used to control two LEDs and an AUX/Buzzer outputs to provide a Audible and/or Visual alarm and warning system based on the measured distance. This solution can also be used with Delta’s controllers and integrated with an Advanced Display.

An enclosed design allows for various mounting methods and locations on an outdoor equipment and industrial applications where dirty environments are a factor.

Features


  • Alerts can be audible and/or visual
  • Detection and range based on Ultrasonic Sensing
  • Up to 9 feet Range, +/-50 Horizontal; +/-30
  • Vertical Lobe Rear mounting or front mounting option

Technical Specifications


  • Operating Voltage Range: 9.0V to 16.0V DC
  • Reverse Polarity Protection: Yes
  • Short Circuit Protection: Yes
  • Operating Current: ~150mA
  • Operating Temperature Range: -40 °C to 85 °C
  • Humidity: 95% RH
  • IP67 environmental rating for the harshest of environmental conditions

Markets & Applications


  • Outdoor Power
  • Equipment
  • Construction Equipment
  • Agricultural and Farm Machinery
  • Power Sport Vehicles
  • Material Handling

Call today to learn more about how this safety solution fits your equipment needs!
